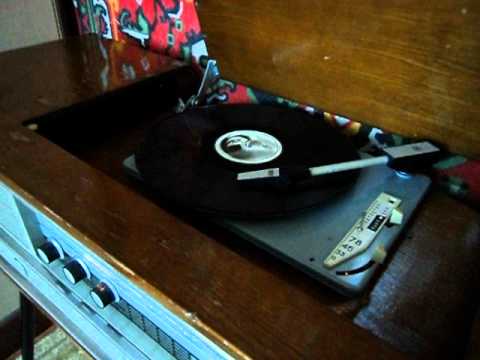

Since the beginning of 1972, the radio network lamp "Cantata-203" has been produced at the Murom plant RIP. ,86e6f450b8cc469628ba70bf2947b049The radiola consists of an all-wave, superheterodyne radio receiver of the second class and an electro-playing device III-EPU-28M, later III-EPU-38 / M. ,86e6f450b8cc469628ba70bf2947b049Radiola operates in the following ranges: DV, SV and KV-1, KV-2 and VHF-FM range. ,86e6f450b8cc469628ba70bf2947b049Sensitivity in DV, SV 150 μV, sub-bands KV - 200 μV, VHF - 20 μV. ,86e6f450b8cc469628ba70bf2947b049Adjacent channel selectivity 30 dB. ,86e6f450b8cc469628ba70bf2947b049The band of operating frequencies in the AM path is 100 ... 4000 Hz, VHF-FM and EPU 100 ... 10000 Hz. ,86e6f450b8cc469628ba70bf2947b049The nominal output power of the amplifier is 1.5, the maximum is 3 W. ,86e6f450b8cc469628ba70bf2947b049Powered by 127 or 220 VAC. ,86e6f450b8cc469628ba70bf2947b049Radiols since 1975 have been designed for a 220 V network. ,86e6f450b8cc469628ba70bf2947b049The power consumption at the reception is 60 W, the operation of the EPU is 75 W. ,86e6f450b8cc469628ba70bf2947b049The dimensions of the radio are 660x315x245 mm, weight 20 kg.,86e6f450b8cc469628ba70bf2947b049,null,ru,null,null,null,null
