Since 1964, the Signal TV has been produced by the Kozitsky Leningrad Plant and the Radiopribor Leningrad Plant.
,86e6f450b8cc469628ba70bf2947b049

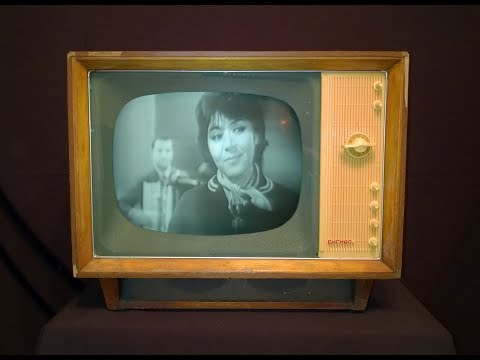

The Signal TV (ZK-38) contains 20 radio tubes, 15 diodes and a 43LK9B kinescope with a beam deflection angle of 110 °.
,86e6f450b8cc469628ba70bf2947b049
The use of this picture tube made it possible to reduce the depth of the TV in comparison with similar models by 30%.
,86e6f450b8cc469628ba70bf2947b049
The size of the visible part of the image on the screen is 270x360 mm.
,86e6f450b8cc469628ba70bf2947b049
Sensitivity 100 μV.
,86e6f450b8cc469628ba70bf2947b049
AGC, inertial synchronization with AFC and F line autogenerator provide the TV with confident reception of image and sound on an external antenna at a distance of 70 km from the TV center.
,86e6f450b8cc469628ba70bf2947b049
In the scanner circuit, image size stabilization is applied when the mains voltage changes and when parts are warmed up.
,86e6f450b8cc469628ba70bf2947b049
In order to remove image distortions, a knob for clarity correction is brought out.
,86e6f450b8cc469628ba70bf2947b049
The acoustic system, consisting of two loudspeakers 1GD-9, which are located in the front in the lower part with an input power of 1 W and a frequency range of 100 ... 7000 Hz, provides good sound quality in a medium-sized room, and tone controls for low and high frequencies allow you to select
,86e6f450b8cc469628ba70bf2947b049
desired tone.
,86e6f450b8cc469628ba70bf2947b049
There are headphone jacks that can be used to connect a tape recorder for recording.
,86e6f450b8cc469628ba70bf2947b049
Wooden case, polished with imitation of precious woods.
,86e6f450b8cc469628ba70bf2947b049
All main control knobs are located on the front panel, auxiliary knobs are located on the left side in the vertical row.
,86e6f450b8cc469628ba70bf2947b049
The TV is assembled on a vertical chassis using printed wiring.
,86e6f450b8cc469628ba70bf2947b049
The TV was produced in two versions of the case, with straight and rounded corners (model ZK-39).
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the device are 610x500x400 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 32.5 kg.
