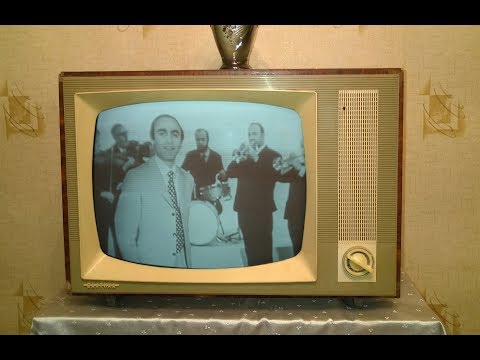

Since 1967, the Baltika television receiver for b / w images has been produced by the Leningrad plant "Radiopribor".
,86e6f450b8cc469628ba70bf2947b049
The second-class lamp-semiconductor TV Baltika was created on the basis of the Signal-2M TV set of the Kozitsky plant and according to its documentation.
,86e6f450b8cc469628ba70bf2947b049
The first releases of the TV "Baltika" in the scheme and design were similar to the modernized TV "Signal-2M", but later on the TV "Baltika" the line scan unit was modernized, which was borrowed from the TV "Aurora", there were also
,86e6f450b8cc469628ba70bf2947b049
other minor schema changes.
,86e6f450b8cc469628ba70bf2947b049
The modernization of the TV "Baltika" was not recorded in the documents, the TVs were produced without indexes.
,86e6f450b8cc469628ba70bf2947b049
TV Baltika is designed to receive black-and-white programs in the frequency range 48.5 ... 100 and 174..230 MHz.
,86e6f450b8cc469628ba70bf2947b049
It uses a 47LK2B kinescope with an image size of 300x380 mm, 20 radio tubes and 16 semiconductor devices.
,86e6f450b8cc469628ba70bf2947b049
The sensitivity of the model is 50 μV.
,86e6f450b8cc469628ba70bf2947b049
Rated output power 1.5 W.
,86e6f450b8cc469628ba70bf2947b049
The band of reproducible sound frequencies is 100 ... 10000 Hz.
,86e6f450b8cc469628ba70bf2947b049
Tone control is carried out by LF and HF frequencies.
,86e6f450b8cc469628ba70bf2947b049
The TV has sockets for turning on headphones and for connecting a tape recorder for recording.
,86e6f450b8cc469628ba70bf2947b049
The TV is powered by a 127 or 220 V power supply, consuming 200 watts.
,86e6f450b8cc469628ba70bf2947b049
The dimensions of the TV are 440x600x395 mm.
,86e6f450b8cc469628ba70bf2947b049
Weight 32 kg.
