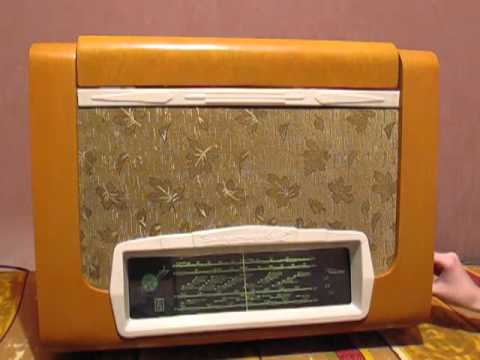

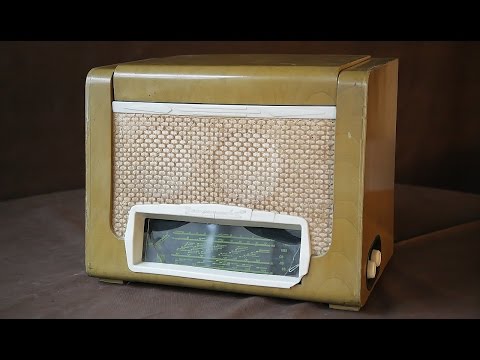

Radio and "Dnepropetrovsk" radio since 1954 and 1956 were produced at the Dnepropetrovsk radio factory. A second-class radio receiver, Dnepropetrovsk, is a six-lamp network desktop superheterodyne. It has the ranges of LW, MW and 2 sub-bands KV: KV1 3.95 ... 9.85 MHz, KV2 8.5 ... 12.1 MHz. Sensitivity 150 µV. The adjacent channel selectivity is 26 dB, the specular one is 40 dB in the LW, LW and 12 dB bands in the HF sub-bands. Band of reproducible sound frequencies 100 ... 4000 Hz. The speakers used two speakers 1GD-1.5 with spaced resonance. Rated output power 1.5 watts. The power consumption of 65 watts from the network. There are adapter jacks and an additional speaker. The body of the receiver is wooden, veneered for valuable species. The dimensions of the receiver are 515x345x265 mm. Weight 12.2 kg. Radiola '' Dnepropetrovsk '' was created on the basis of a radio receiver, differing in the design of the case and the electric player with the ZP-123 universal pickup, with interchangeable needles and the DAG-1 asynchronous electric motor, with a gearshift mechanism of 33 and 78 rpm. When EPU is operating, the audio frequency range is 100..7000 Hz. Power consumption 80 watts. The dimensions of the radio are 515x380x265 mm, its weight is 15 kg.
