Sokol-109 1982
Sorry, this page is not translated yet. Automatic translation used.

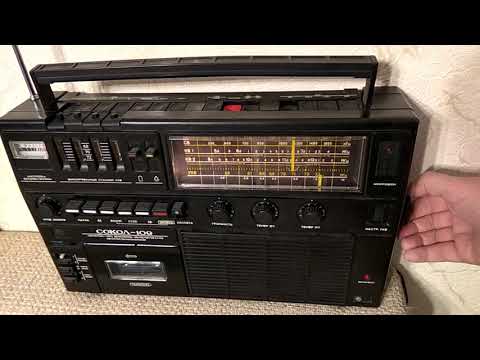

The Sokol-109 portable cassette recorder was produced in a pilot series in 1982 by the Moscow PA Temp. ,86e6f450b8cc469628ba70bf2947b049The radio tape recorder is designed to receive radio stations and record and playback phonograms. ,86e6f450b8cc469628ba70bf2947b049It consists of a radio receiver and a cassette tape recorder panel. ,86e6f450b8cc469628ba70bf2947b049It has AFC and a fixed setting in the VHF range, tone control for LF and HF, manual and automatic recording level control (ARUZ), hitchhiking, tape consumption meter, electret microphone, analogue recording level indicator, tape type switch, two noise suppressors. ,86e6f450b8cc469628ba70bf2947b049The radio is powered from a 220 volt alternating current network, through a built-in power supply or from six A-373 type elements. ,86e6f450b8cc469628ba70bf2947b049Sensitivity to the internal antenna in the LW 1.5 mV / m, SV 0.7 mV / m ranges, to the telescopic in the KB 0.3 mV / m, VHF 0.01 mV / m ranges. ,86e6f450b8cc469628ba70bf2947b049Selectivity 40 dB. ,86e6f450b8cc469628ba70bf2947b049The nominal frequency range of the AM path is 100 ... 4000 Hz, FM 100 ... 12000 Hz, tape recorder 63 ... 12500 Hz. ,86e6f450b8cc469628ba70bf2947b049The nominal output power of the radio is 2 W. ,86e6f450b8cc469628ba70bf2947b049Coefficient of detonation of CVL ± 0.3%. ,86e6f450b8cc469628ba70bf2947b049Dimensions of the model - 455x290x124 mm. ,86e6f450b8cc469628ba70bf2947b049Weight with batteries - 7.5 kg. ,86e6f450b8cc469628ba70bf2947b049The original price of the radio was 450 rubles, but due to low demand in 1983 it was reduced to 320 rubles.,86e6f450b8cc469628ba70bf2947b049,null,ru,null,null,null,null
Documentation:
Video:
Information from collection of Valery Khartchenko
