VEF-216 1989
Sorry, this page is not translated yet. Automatic translation used.

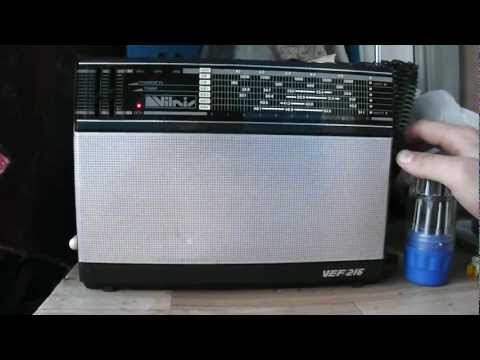

Since 1989, the portable radio set VEF-216 has produced the Riga radio plant VEF. The radio receiver of the 2nd group of complexity "VEF-216" works in 7 bands: DV, SV, KV (4) and VHF It includes the AFC of the local oscillator, AGC, silent tuning, LED indication of tuning on the station. There are headphone jacks and tape recorder. Sensitivity in the ranges of DV 1.5, CB 0.7, KV 0.3 mV / m, VHF 50 mV. 26 dB selectivity. Band of reproducible sound frequencies when operating in the FM 150 ... 10,000 Hz. The rated output power is 250 mW. Universal power, from the network or 6 elements of the A-373. The current consumption when no signal is 14 mA, and with an average output power of about 40 mA. A battery pack with an average volume is enough for 100 hours of work. Dimensions of the model 297x247x80 mm. Weight without batteries 2.3 kg. The VEF-216 receiver was also produced in the export version with the FM band: 88 ... 108 MHz. In terms of its design and wiring diagram, the VEF-216 radio receiver is similar to the VEF-214 radio receiver.
Information from collection of Valery Khartchenko
